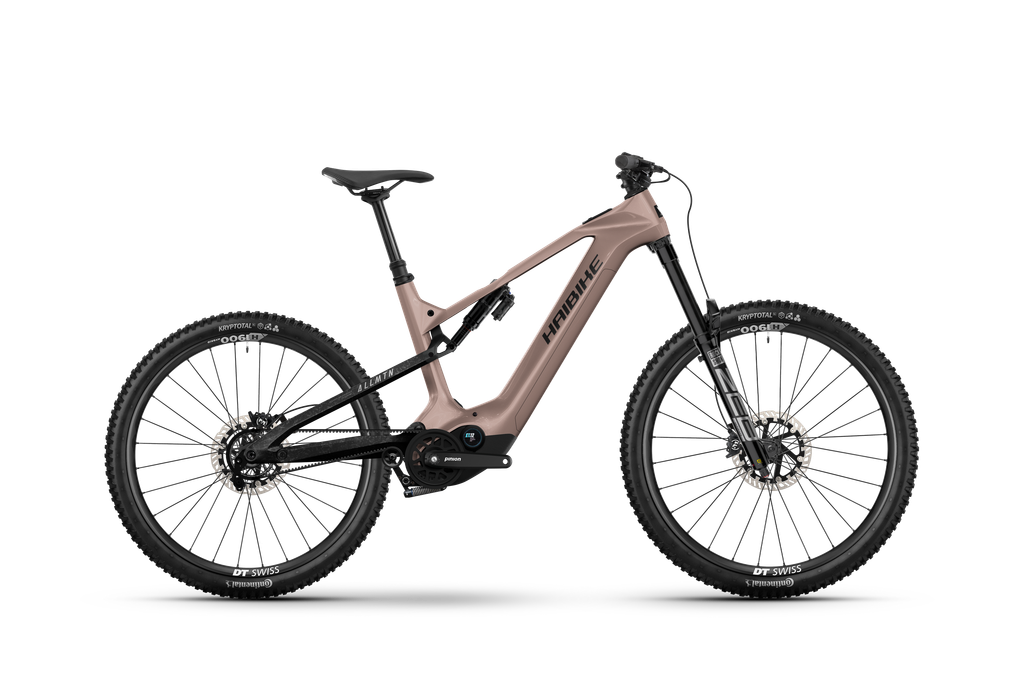

HAIBIKE ALLMTN CF 11TRN/IQ 2025
The 2025 HAIBIKE ALLMTN CF 10 TRN/IQ marks a significant evolution in high-performance full suspension electric mountain bikes, specifically designed for the demands of enduro riding. Its core innovation lies in the integration of the Pinion Motor Gearbox Unit (MGU) E1.12, a groundbreaking system that combines a powerful, durable e-bike motor with an electronically controlled 12-speed gearbox. This unified design promises riders a seamless and intuitive experience, eliminating traditional derailleur complexities and offering consistent performance across varied terrain. The focus is firmly on allowing riders to concentrate on the trail ahead, whether tackling steep, technical ascents or pushing their limits on fast, challenging descents.

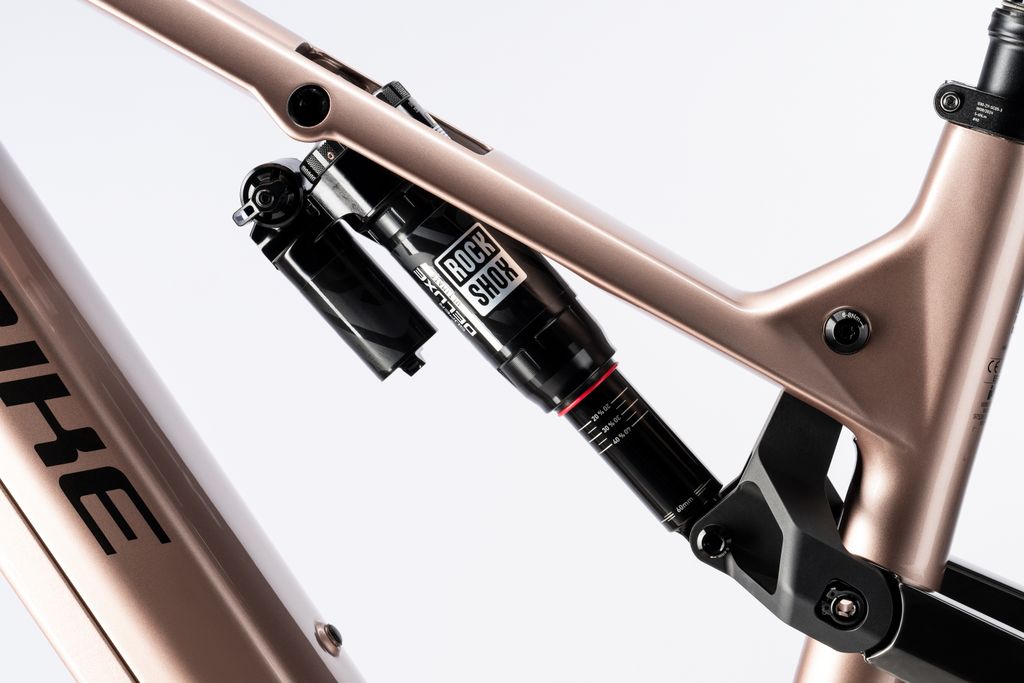

Built to conquer demanding trails, the ALLMTN CF TRN/IQ features a plush 160mm of suspension travel at both ends, expertly tuned to absorb aggressive impacts and maintain traction. The adoption of a mullet wheel configuration – a larger front wheel for improved rollover and a nimbler 27.5" rear – further enhances its capability on technical terrain. A high-capacity, removable 800 Wh battery ensures ample range for extended rides, while its intelligent integration with the Pinion MGU optimizes power delivery for efficiency and performance. As part of the new TRN/IQ model series within the AllMtn family, this bike represents HAIBIKE's commitment to pushing technological boundaries and delivering a cutting-edge e-Enduro experience for discerning riders.

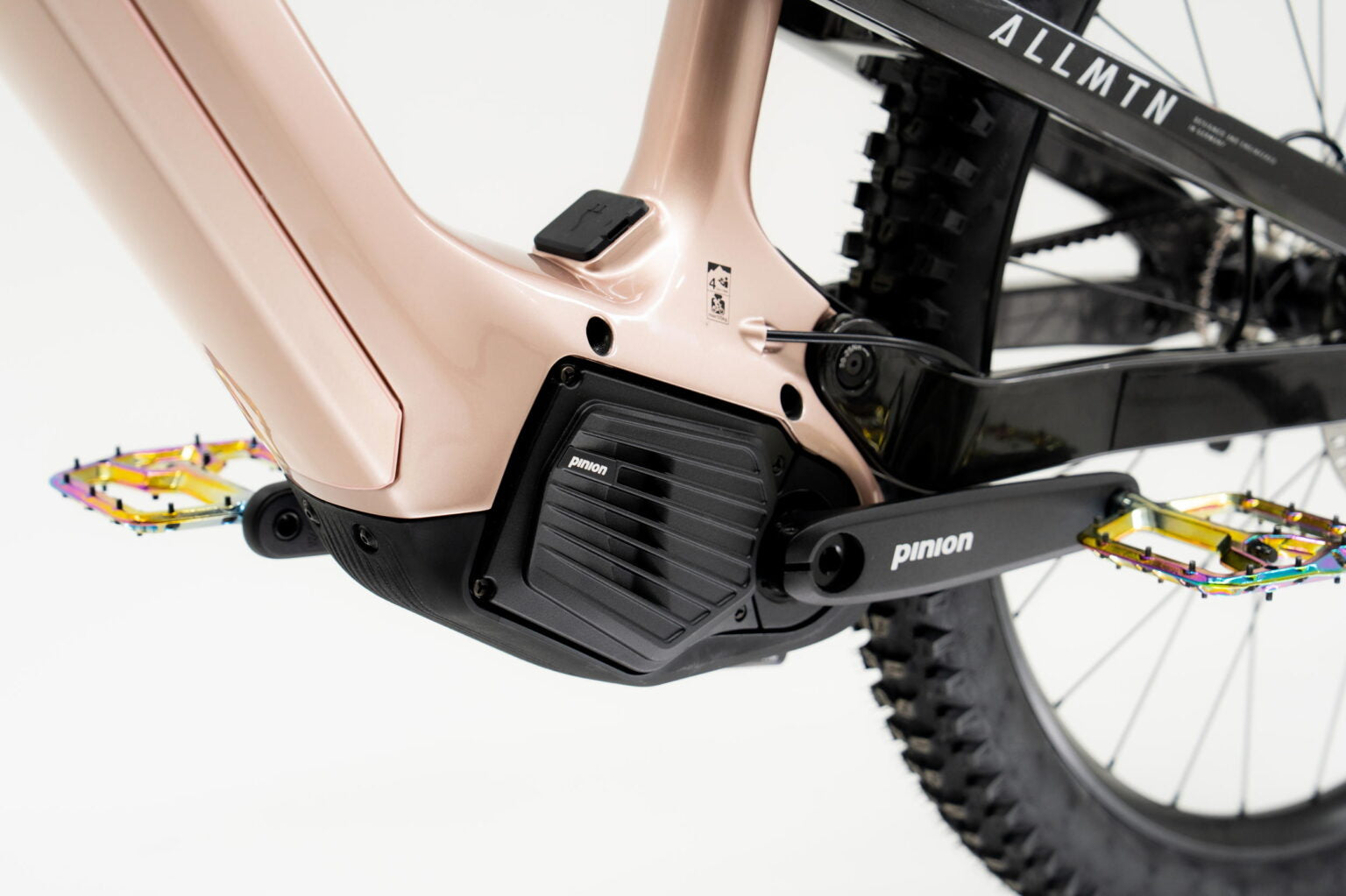

Pinion Motor Gearbox Unit
The HAIBIKE ALLMTN CF TRN/IQ incorporates the Pinion Motor Gearbox Unit (MGU) E1.12. This integrated system represents a departure from conventional e-bike drivetrains, combining an electric motor with an internal 12-speed gearbox.
Key Features and Benefits:
-
Integrated Design: The MGU houses both the motor and gearbox in a single, compact unit, positioned at the bottom bracket. This contributes to a balanced weight distribution and enhances frame stiffness.
-
Electronic Shifting: Gear changes are actuated electronically, offering reliable and rapid shifts, even under load, to help riders maintain momentum.
-
Wide Gear Range: The 12-speed gearbox provides a broad 600% gear range, ensuring optimal cadence for varied terrain.
-
Durability and Low Maintenance: By encapsulating the gearbox, the MGU is protected from external elements, reducing wear and tear and minimizing maintenance requirements compared to traditional derailleur systems.
-
Enhanced Reliability: The robust design and internal gearing contribute to increased drivetrain reliability, important for demanding enduro riding.
The Pinion MGU E1.12 aims to deliver a more efficient and reliable riding experience. The implications of this technology for e-MTB performance and maintenance are significant
Pinion Assistance modes

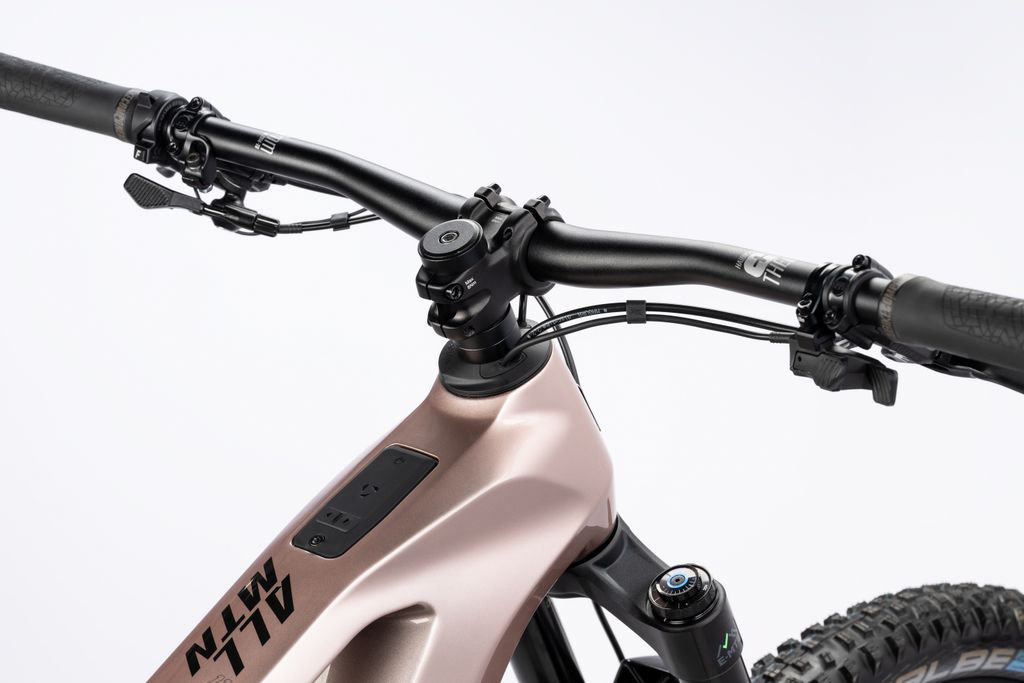

The Pinion E-Drive system offers 4 support levels: “Eco” is designed for maximum range while “Fly” lets the rider fully call on the enormous power of the system at any time. The “Flow” and “Flex” levels, however, are adaptive riding modes designed to be dynamic and to adapt the amount of support perfectly to every riding situation and the terrain you’re facing. A finely tuned starting aid that helps to prevent wheel spin when setting off on loose climbs and a Boost Button on the handlebars further round out the package. Additionally, all support modes can be tailored to riders’ individual preferences through the FIT E-Bike Control App.
Mullet Setup

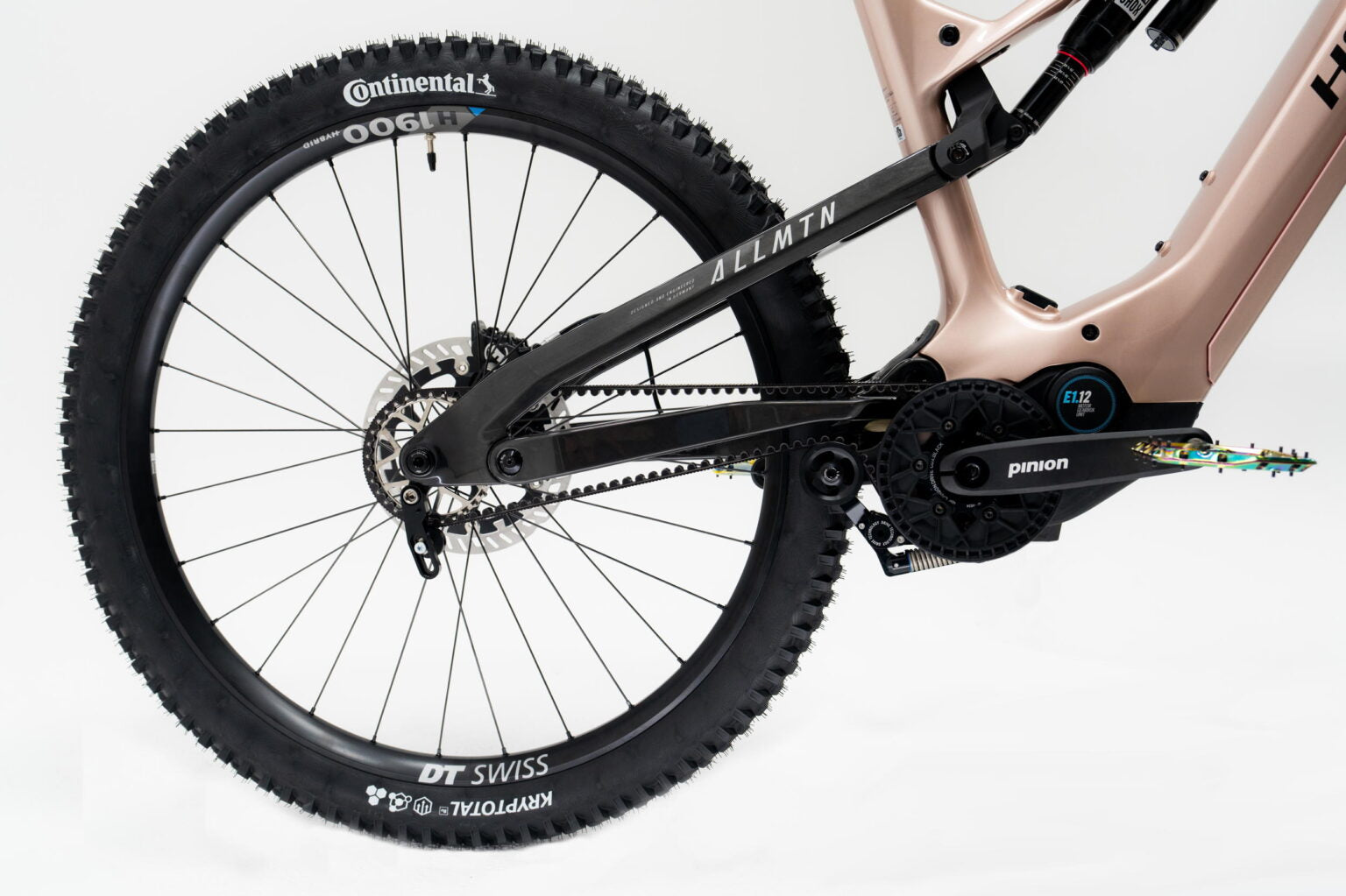

To maximise its all-mountain potential, the Haibike ALLMTN CF TRN/IQ employs a mullet wheel setup. This configuration pairs a larger 29-inch front wheel, which improves obstacle rollover and momentum on challenging terrain, with a nimbler 27.5-inch rear wheel. The smaller rear wheel enhances agility, allows for quicker acceleration, and provides increased clearance for the 160mm of suspension and the dropper seatpost on steep descents. The result is a bike that offers both confident stability on demanding downhills and playful responsiveness for navigating tight, technical trails.
Smart shifting
Smart Shift technology enables precise and seamless shifting, even under load. There is no external cassette and no external rear derailleur that can get out of line or break off. The gearbox is also sealed against water and dirt, which significantly reduces wear. All parts of the system work together as a unit for fast shifting in all situations and on any terrain.
Playful handling and central centre of gravity
Shorter chainstays and a central centre of gravity ensure playful handling. The elimination of the rear derailleur and cassette reduces the unsprung mass with advantages in terms of handling, riding dynamics and rear triangle performance. As a result, the AllMtn TRN/IQ models bring a high level of suspension sensitivity to the trails - for maximum riding fun, comfort and more stability off-road.
