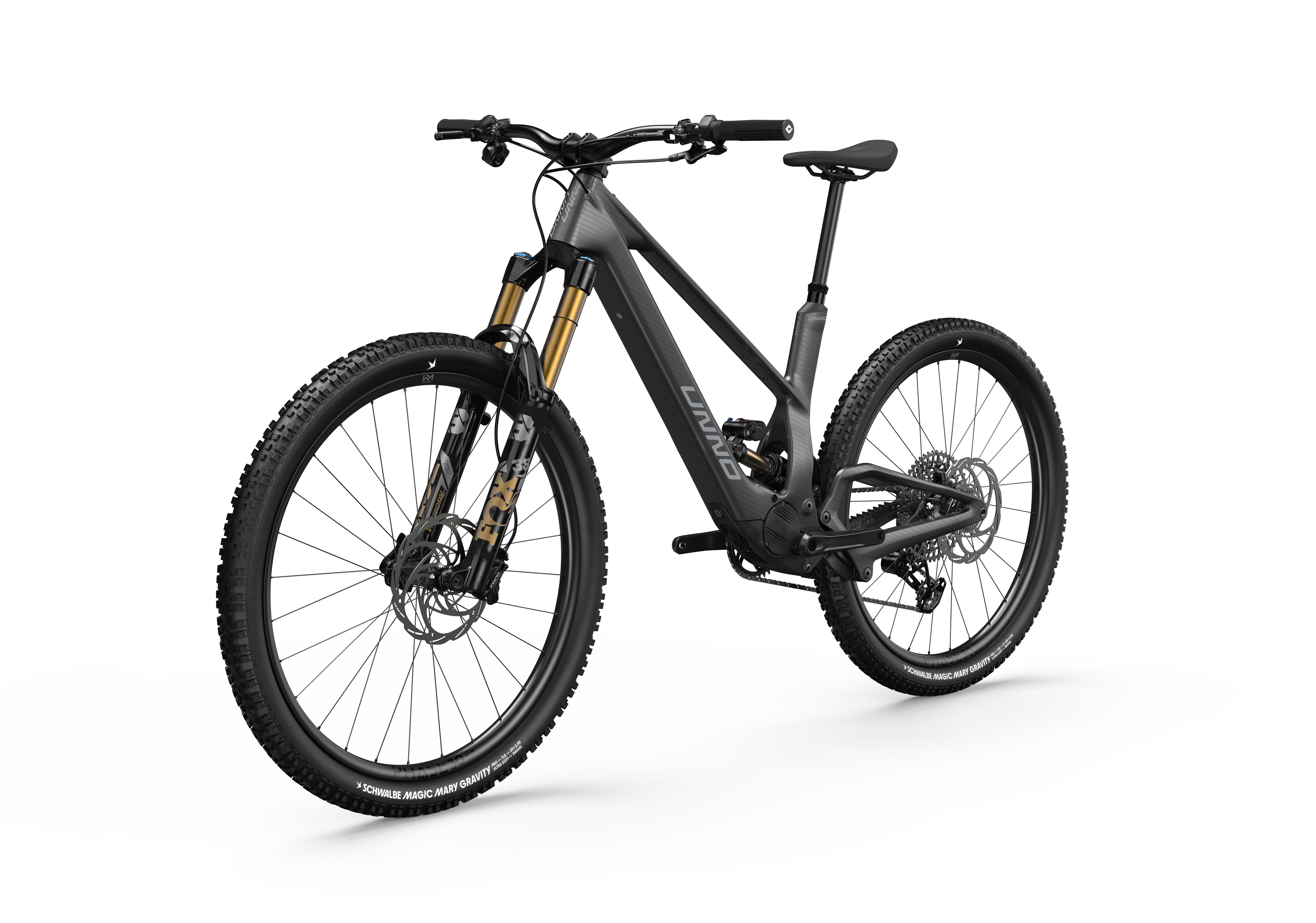

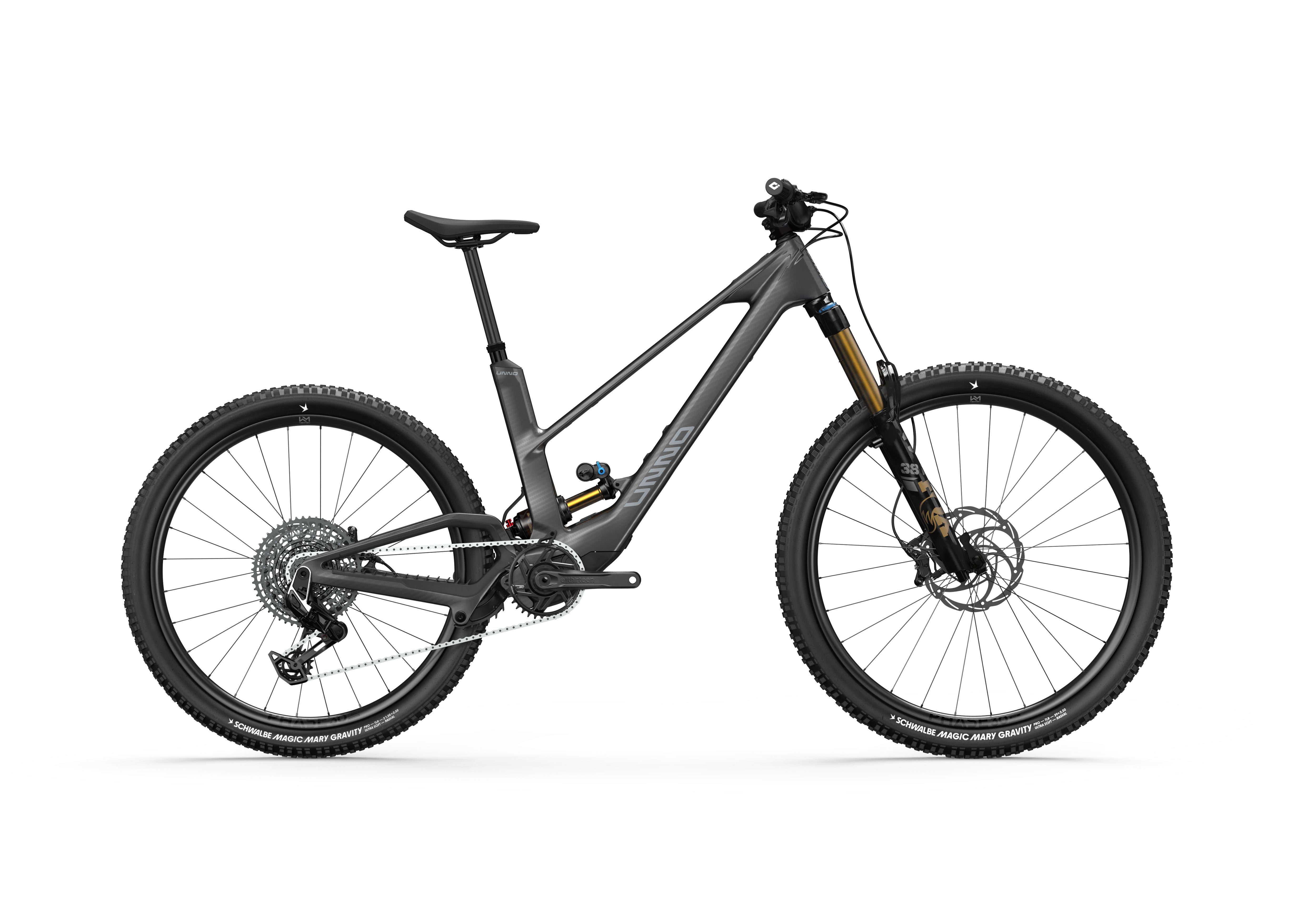

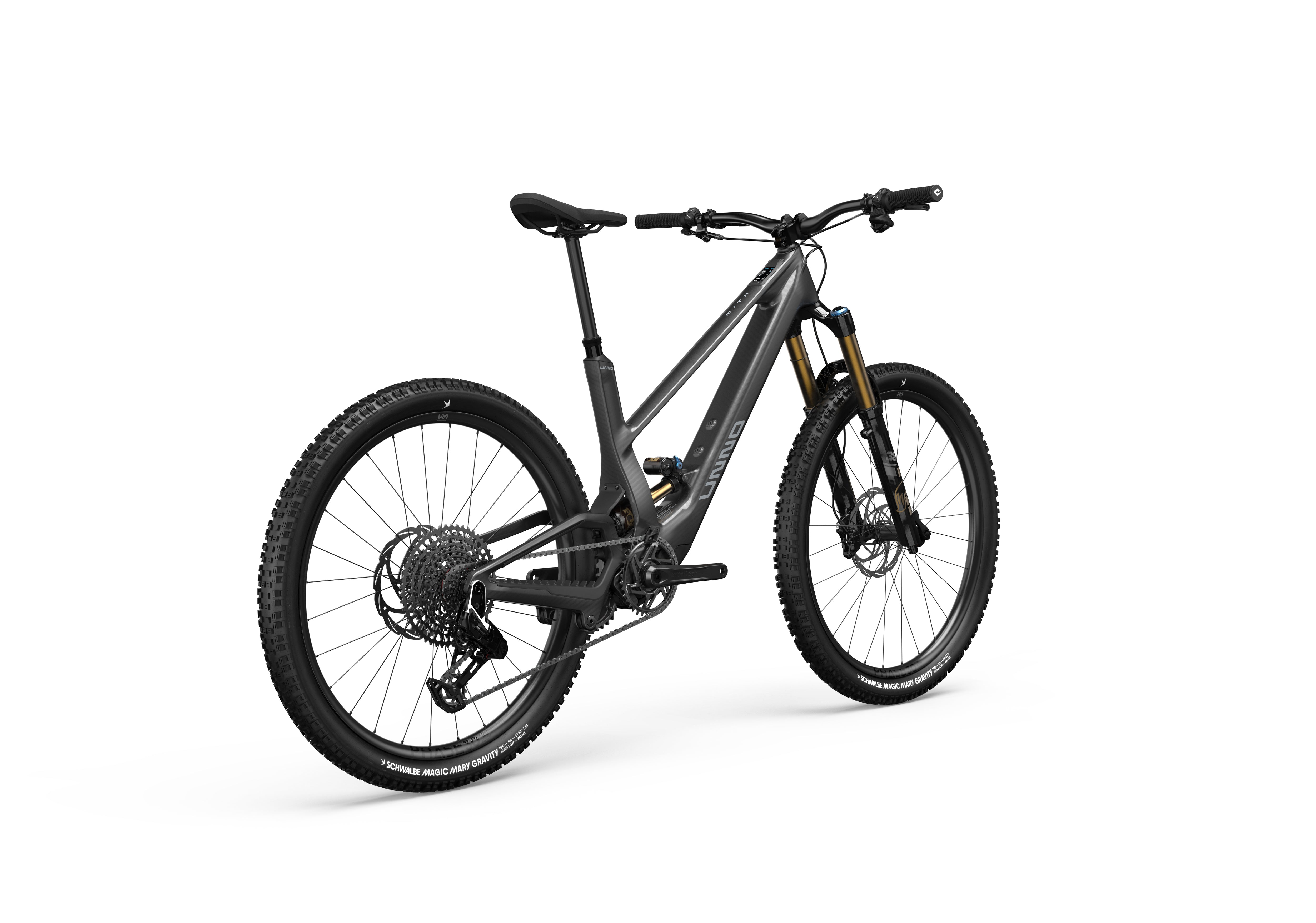

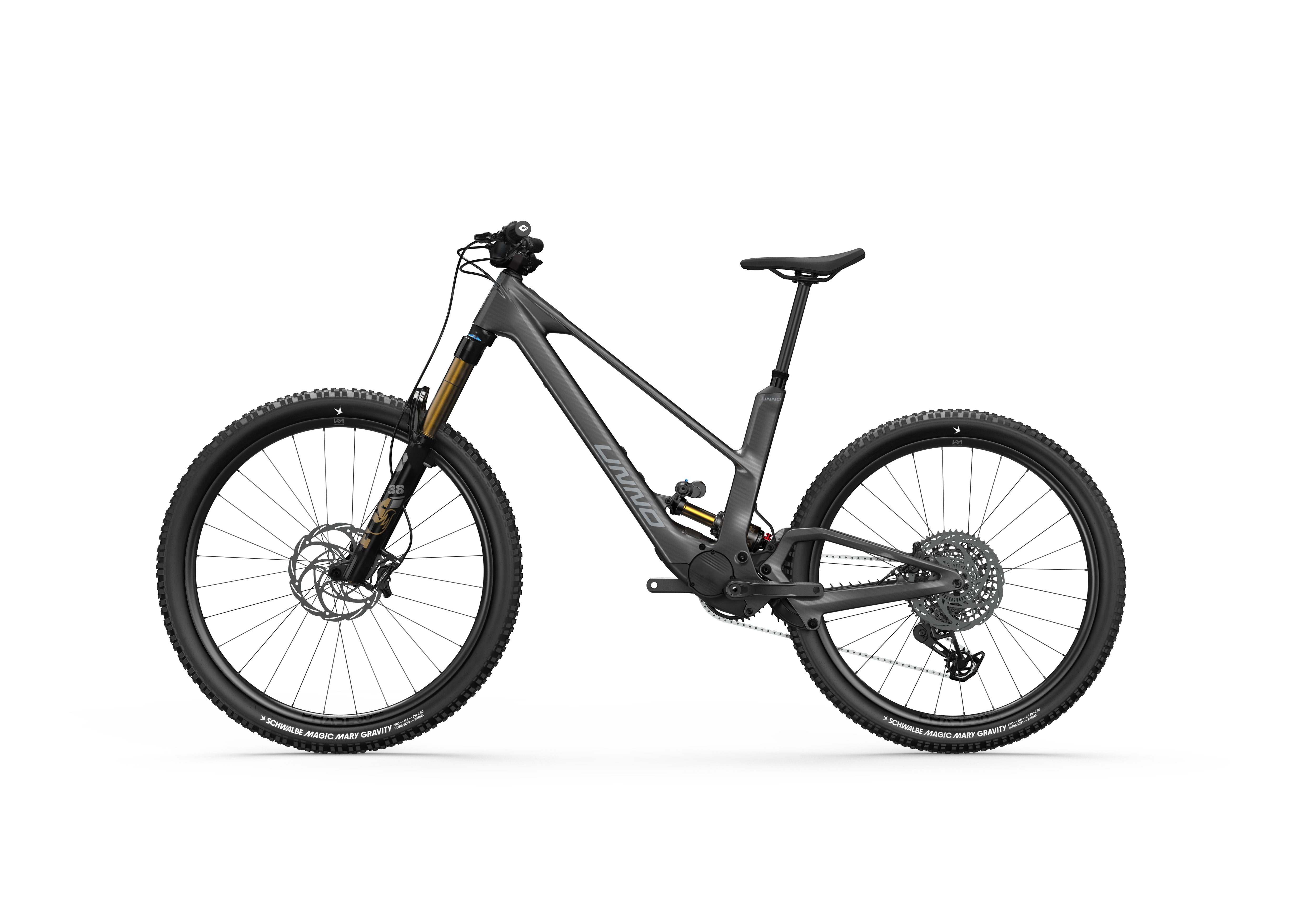

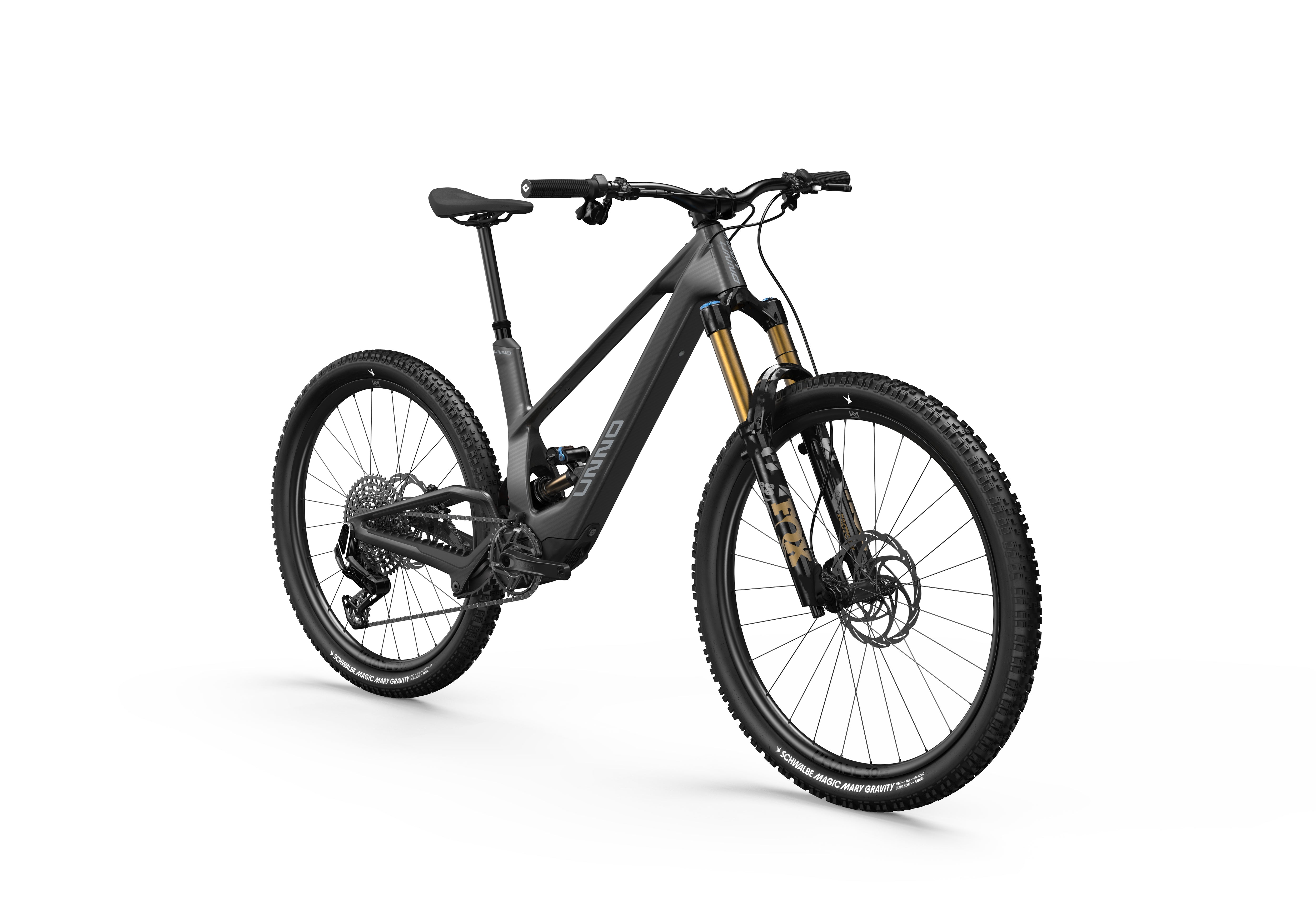

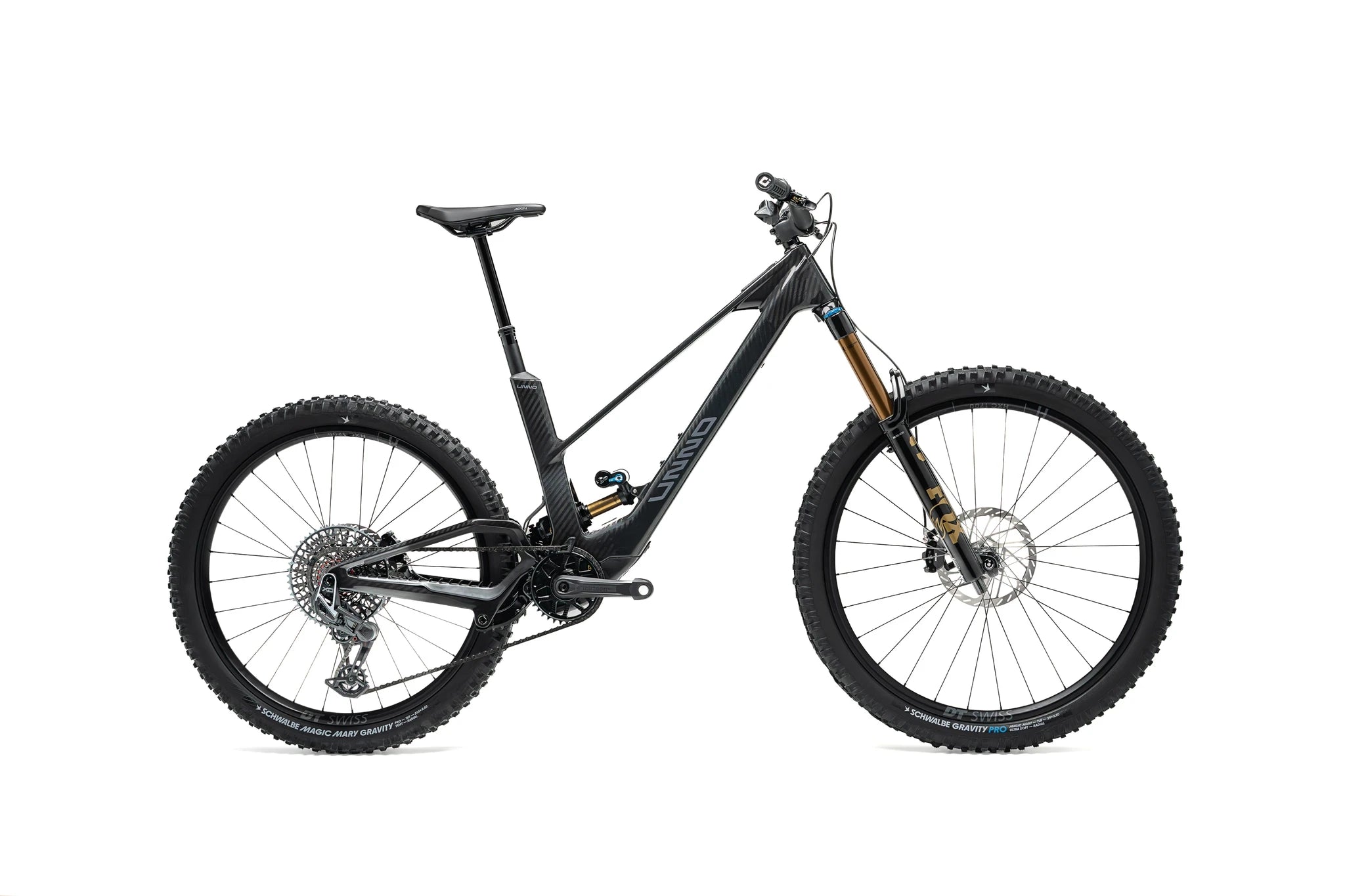

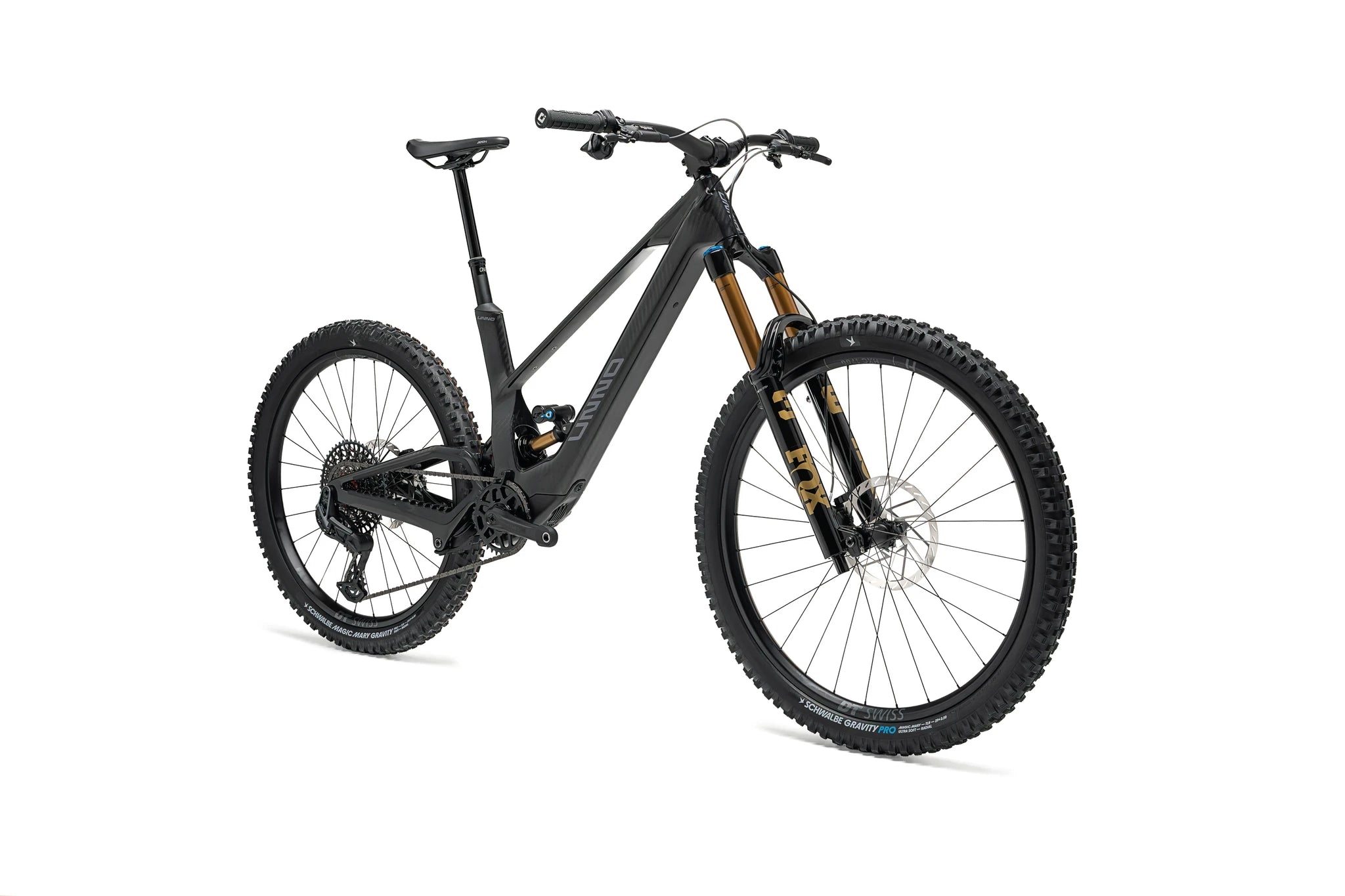

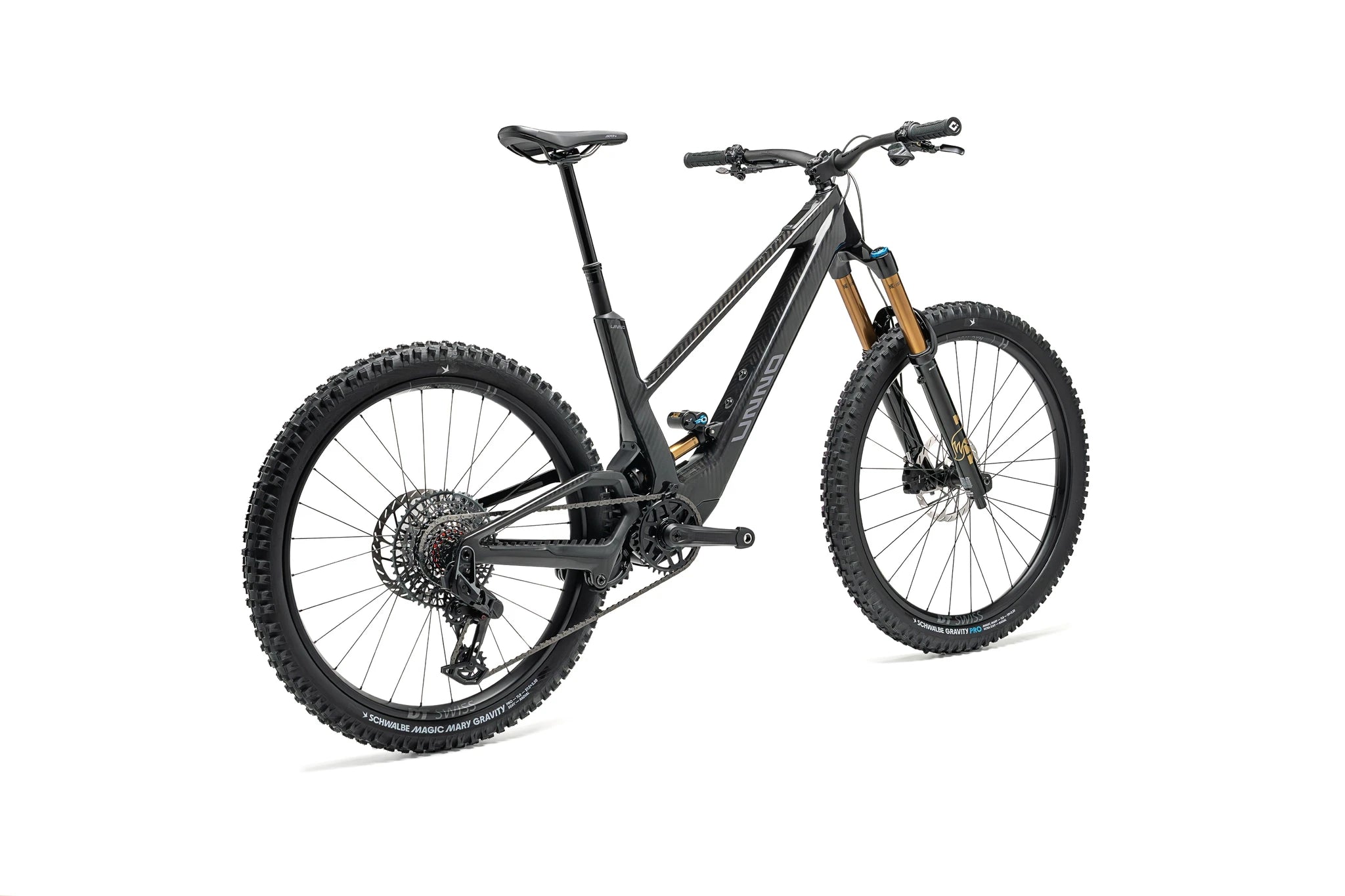

The MITH PRO combines the full carbon frame, Avinox M2S drive unit, and 800Wh battery with a proven, high-end component package. FOX Factory suspension, SRAM X0 AXS T-Type drivetrain, and DT Swiss HX 1700 wheels strike a balance between precision and durability.
Frame
Frame
MITH PRO
T700/T1000 Carbon fiber monocoque with PRO twill carbon weave finish and virtual pivot suspension.
Headset
CANE CREEK
FORTY Series (IS41-42/28.6 - IS52/40)
Drivetrain
Motor
Avinox
AVINOX M2S (2,60kg Drive unit with 250W rated power)
Regular modes max: 1300 W / 130 Nm
Boost mode max: 1300 W / 150 Nm
Battery
Avinox FS800 Wh
Integrated 3.74kg battery, delivered with 508W 12A fast charger
0 to 75% in 90min
0 to 100% in 2h 25min
Display
Avinox DP100
2" OLED smart multi-function touchscreen with 800 nits and 326 ppi
Controller
Avinox BC100
Wireless Controller with Bluetooth Connectivity

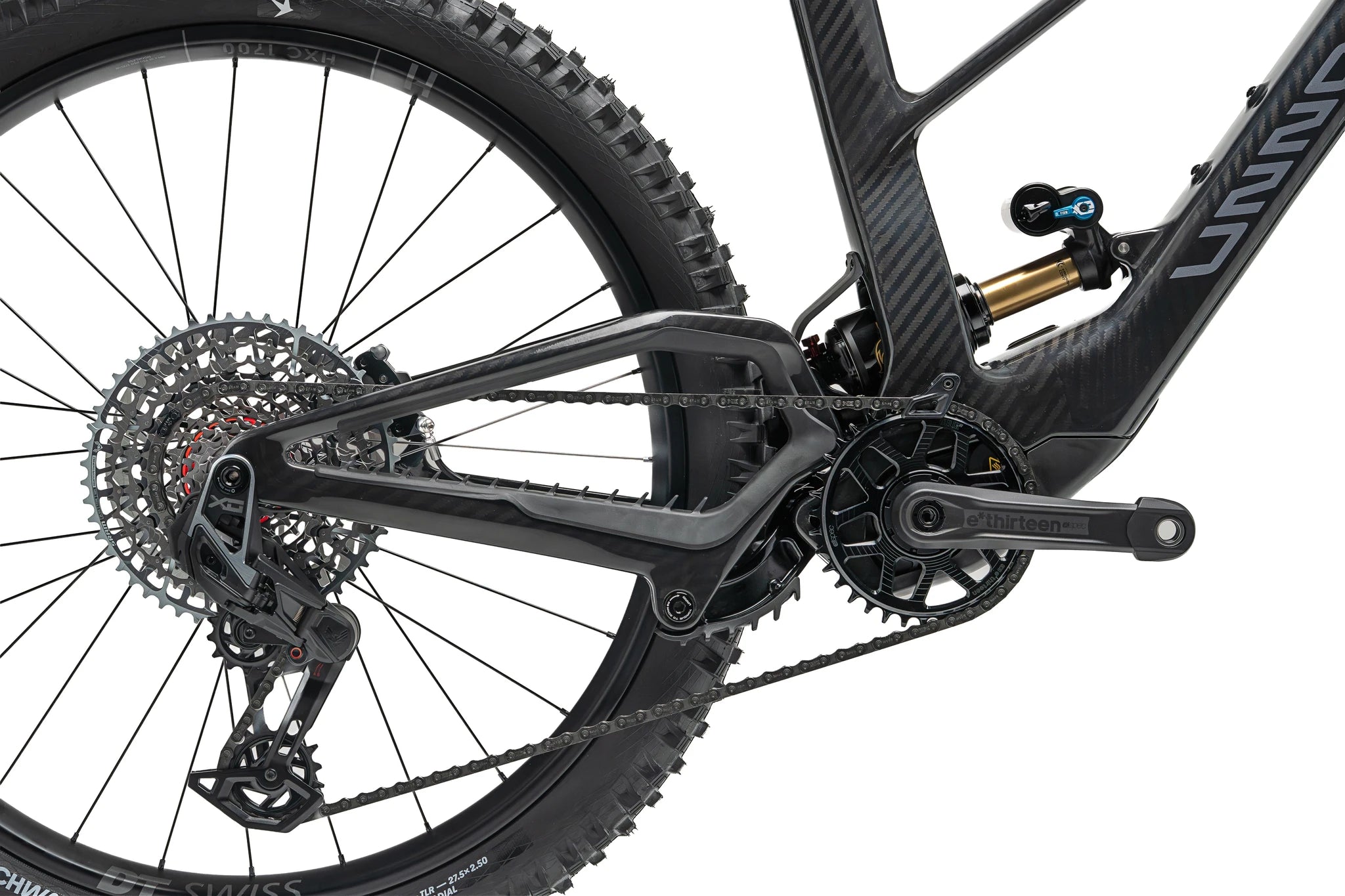

Transmission
Derailleur
SRAM X0 Eagle AXS
AXS Wireless - T-Type - 12speed
Controller
SRAM / ONE UP
Right: SRAM AXS POD ROCKR
Left: ONE UP Mechanical Shifter
Chainring
E13 HELIX RACE E*SPEC
Suspensions
Fork

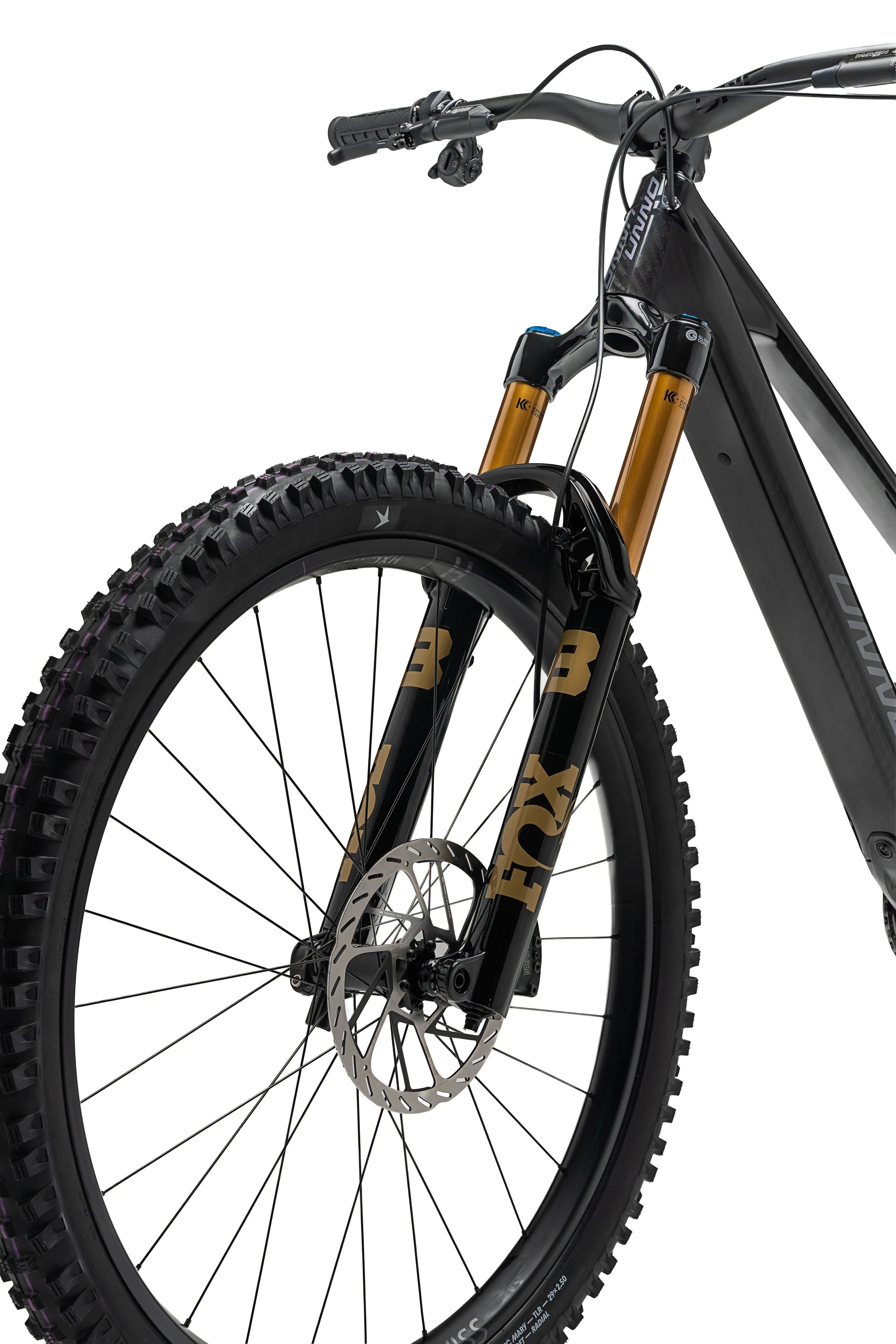

Fox 38 Factory
170mm travel. Kashima coating. Grip X2 damper. Adjustments: HSC, LSC, HSR, LSR. 44mm offset.

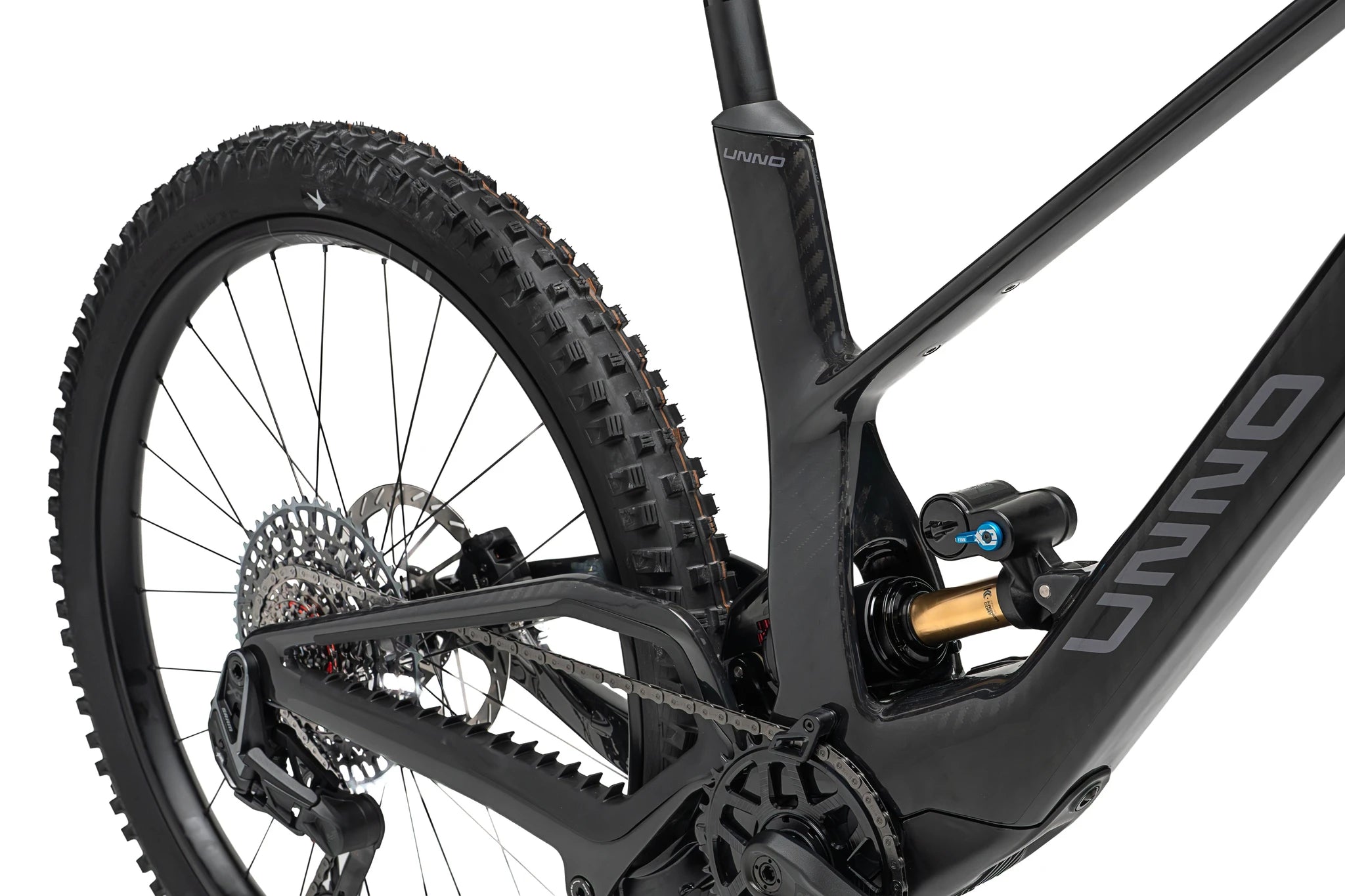

Shock
Fox Float X2 Factory
230x65mm. Kashima coating. 2-pos lever. VVC Rebound. Adjustments: HSC, LSC, HSR, LSR. 160mm of travel, 230mm length and 65mm stroke.
Wheelset
Wheels
DT SWISS HXC 1700
Mullet 29" Front and 27.5" Rear.
Front Tyre
SCHWALBE Magic Mary
Ultra Soft Gravity Pro, TLR, 29” x 2.5”
Rear tyre
SCHWALBE Magic Mary
Soft Evo Gravity Pro, TLR, 27.5” x 2.5”
Brakeset
Rotors
SRAM
SRAM HS2 6-BOLT TYPE 200mm
Cockpit and seat

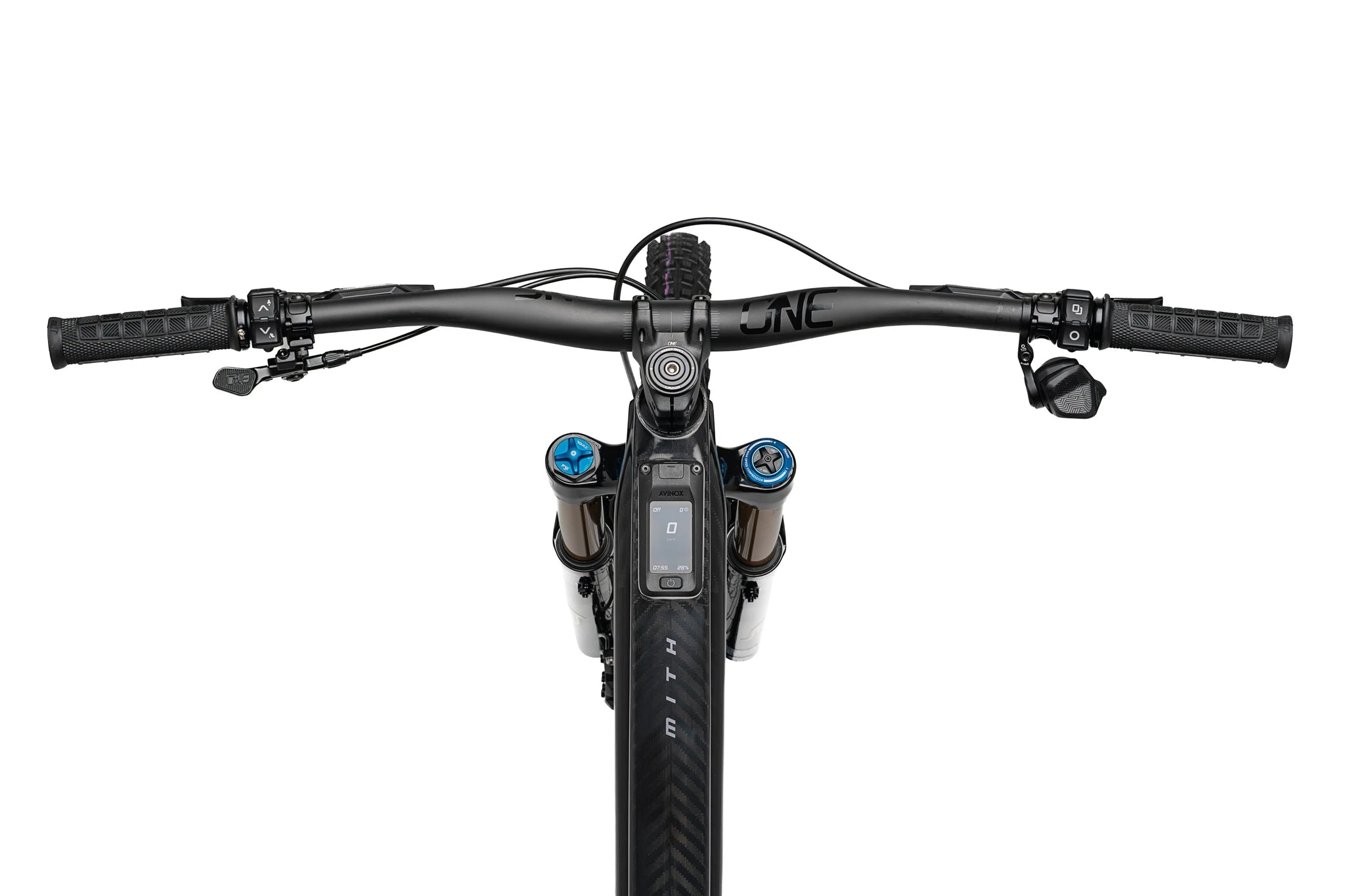

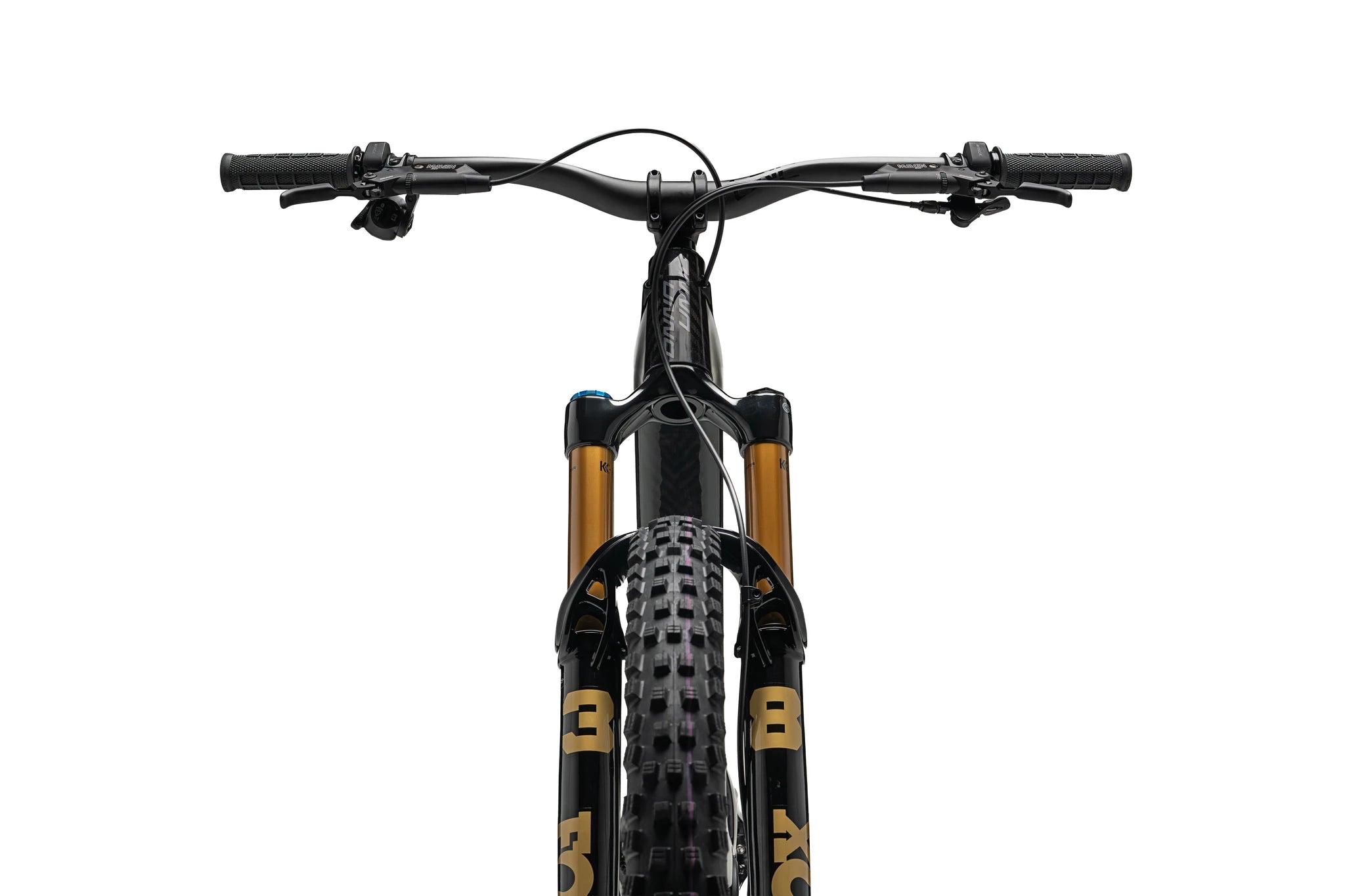

Cockpit
ONE UP V2
Carbon handlebar, 35mm diameter, 800mm length, 35mm rise and ONE UP FORGED 42mm stem

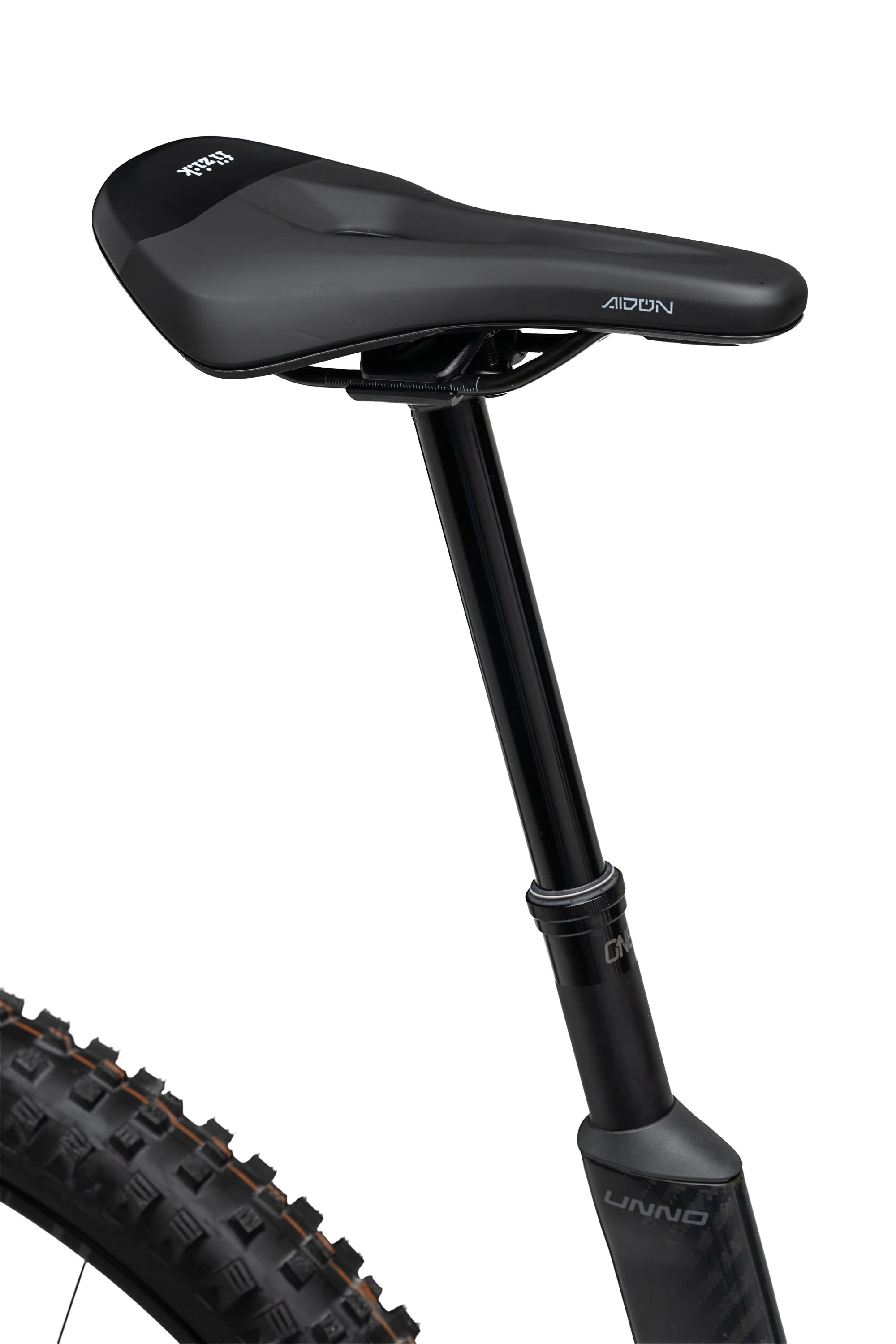

Dropper
ONE UP V3 Mechanical
31.6mm diameter with Travel of: 150 mm (S1), 175 mm (S2), 200 mm (S3)
Saddle
FIZIK Terra Aidon X5
