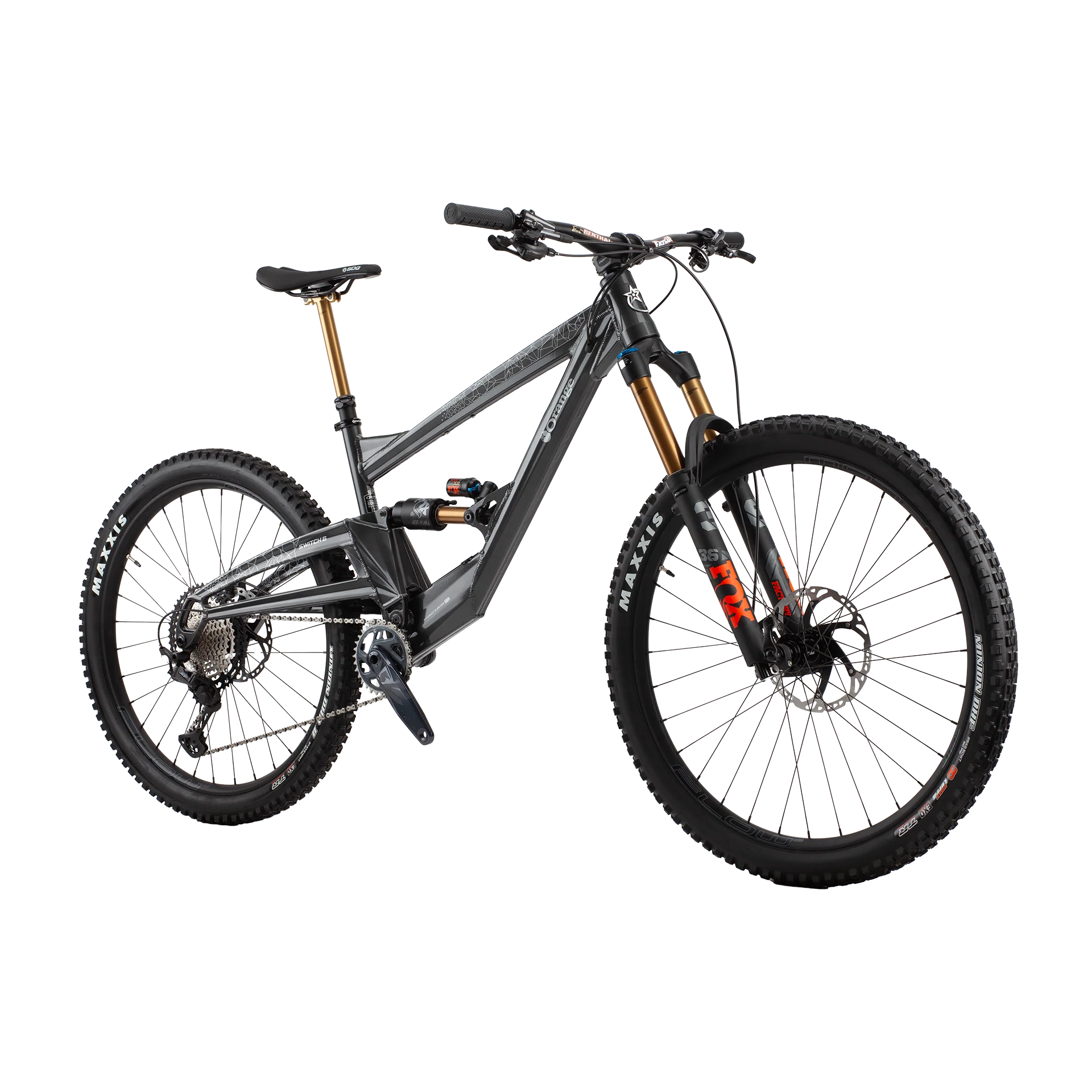

Orange Switch 6 Factory
Pickup currently unavailable at 5 Guildford Road
F: 160MM | R: 160MM | W: 29/27.5 MX
- Brand New Lightweight Frame machined & Handbuilt in Britain
- 5-year frame warranty with limited lifetime crash replacement
- Aggressive All-Mountain Geometry
- New On-board Orange SAFE – Store Accessories, Food & Equipment
- More neutral pivot location allowing less drivetrain/suspension interaction
- Short seatube sizing for longer dropper-post compatibility
- Zero-stack tapered head-tube
- New stiffer lower profile 56mm zerostack Head tube
- New Improved dropout with UDH gear hanger
- Top-tube bottle/accessory mounts
The new Switch 6 features a host of upgades and new features from the original MX wheeled trail bike we launched a few short years ago. Enduro and fast trail riders swear by its capability. Fast rolling, agile and forward thinking.
This new Switch 6 is a 160/160mm MX wheeled mountain bike for… well, just about anything. If you've followed Orange Factory Racing you'll know the guys used the original Switch 6 for their first year of the EWS, or if you've heard of Jack Carthy (10x trials world champion) you'll know its equally at home hopping, skipping and jumping over some of Yorkshire's most precarious rock structures. It's also the chosen daily driver for many a rider, used on their local trails or summer trips abroad.
So by changing it we had a lot to live up to. Luckily when it comes to a performance trail bike we're confident that we are safe hands.
| Frame and Fork | |
| Frame | 6061-T6 Monocoque UK Formed Custom Aluminium Tubing. Wheel Size: MX - 29/27.5. |
| Fork | Fox Factory 36 Float 150mm 29 |
| Swingarm | Bolt Type Allen Key Head (Boost 12 x 148mm Hub) |
| Headset | FPD 44mm / 56mm zerostack |
| Drivetrain | |
| Rear Mech | Shimano XT 12spd |
| Chain | SRAM NX Eagle |
| Shifters | Shimano XT 12spd |
| Cassette | Shimano XT 10-51T 12spd |
| Bottom Bracket | SRAM DUB |
| Crankset | SRAM GX Eagle 32t |
| Wheel and Tyres | |
| Wheelset | Stans Flow Mk4 + Hope Pro 4 (Black) 29 + 27 |
| Tyres | Maxxis Minion DHF 2.5 3c EXO 29/ DHR II 2.4 EXO 27.5 |
| Braking | |
| Brakes | Shimano XT Trail 203/180 |
| Finishing Kit | |
| Stem | Burgtec Enduro Black 42.5mm |
| Saddle | SDG Strange Bel Air III |
| Handlebars | Renthal FatBar M35 800mm |
| Grips | Strange Grappler Lock-On |
| Seatpost | Fox Factory Transfer 150/175mm Drop |
| Seat Clamp | Strange Bolted |
