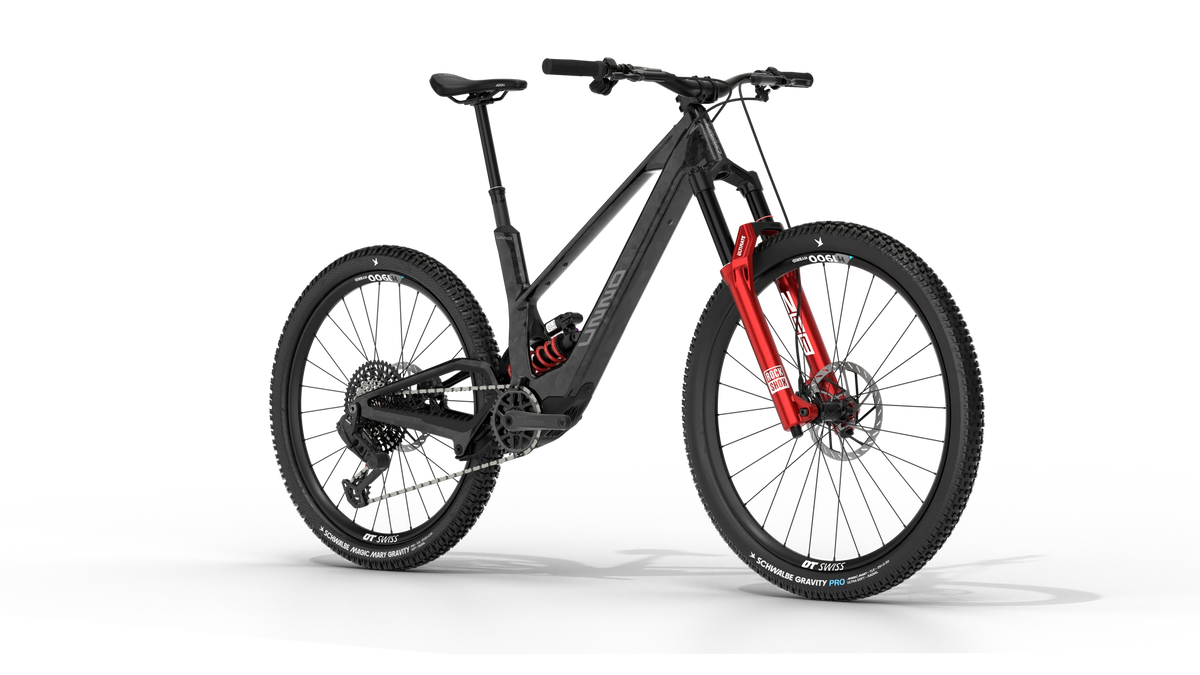

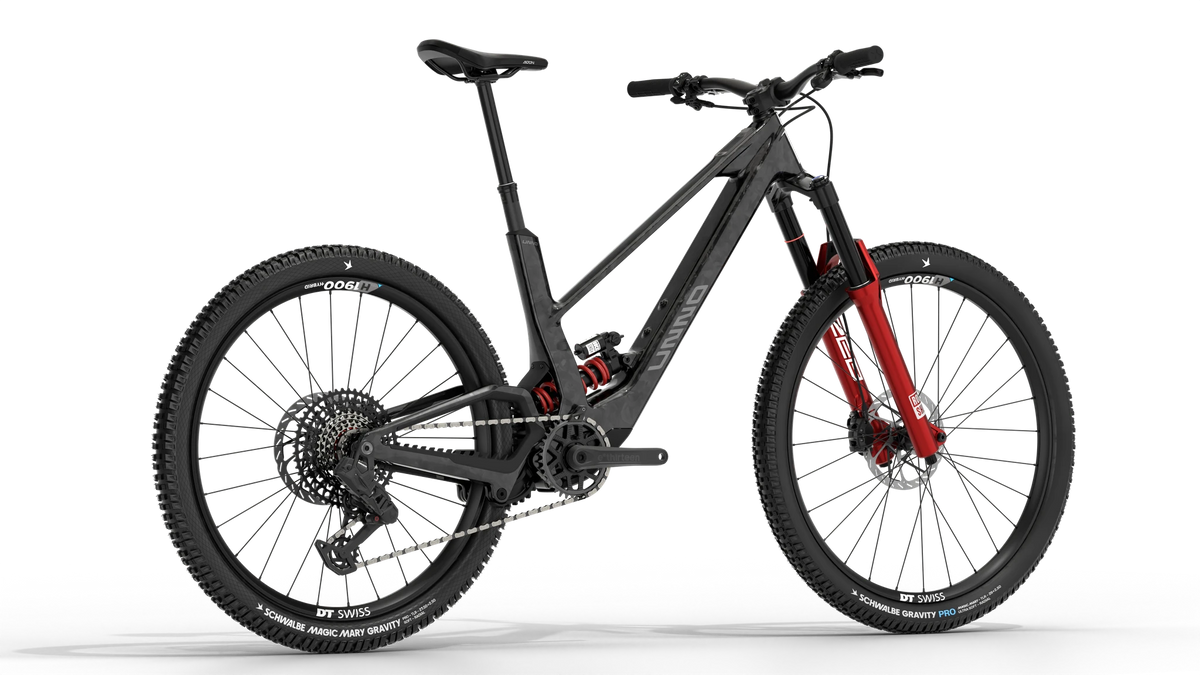

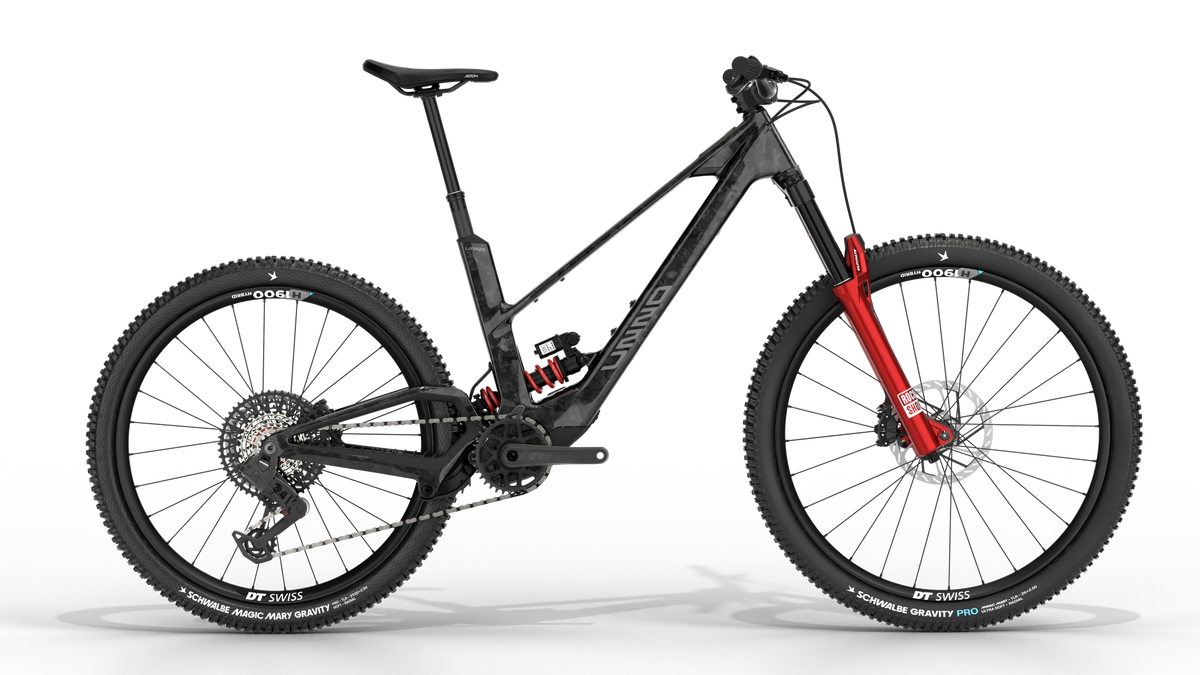

Same MITH. Different attitude.
Raw forged carbon meets Electric Red RockShox suspension.
ZEB Ultimate up front. Vivid Coil Ultimate out back.
Built to stand out.
Built to go fast.
Frame
Frame
MITH RACE RS
T700/T1000 Carbon fiber monocoque with Forged Carbon finish and virtual pivot suspension.
Headset
CANE CREEK
FORTY Series (IS41-42/28.6 - IS52/40)
DRIVETRAIN
Motor
Avinox
AVINOX M2S (2,60kg Drive unit with 250W rated power)
Regular modes max: 1300 W / 130 Nm
Boost mode max: 1300 W / 150 Nm
Display
Avinox DP100
2" OLED smart multi-function touchscreen with 800 nits and 326 ppi
Controller
Avinox BC100
Wireless Controller with Bluetooth Connectivity
Battery
Avinox FS800 Wh
Integrated 3.74kg battery
Charger
Avinox 4A
4A Charger
max. charging power 168 W
Transmission
Derailleur
SRAM S1000 Eagle
AXS Wireless - T-Type - 12 speed
Cassette
SRAM Eagle 70
XS 1270 T-Type, 10-52T V2
Controller
ONE UP / SRAM
Right: SRAM AXS POD Control
Left: ONE UP Mechanical Shifter
Chainring
E13 HELIX RACE E*SPEC
Suspension
Fork
Rock Shox - ZEB ULTIMATE 29" BOOST ELECTRIC RED
170mm travel. 44mm offset.
Shock
Rock Shox - VIVID COIL ULTIMATE
S1 - Coil 275lbs Vivid 230x65mm
S2 - Coil 325lbs Vivid 230x65mm
S3 - Coil 400lbs Vivid 230x65mm
Wheelset
Wheels
DT Swiss H1900
Mullet: 29" front and 27.5" rear with DT 370 hub
Front Tyre
SCHWALBE Magic Mary
Ultra Soft Gravity Pro, TLR, 29” x 2.5”
Rear tyre
SCHWALBE Magic Mary
Soft Evo Gravity Pro, TLR, 27.5” x 2.5”
Brakeset
Rotors
SRAM
CENTERLINE X 160 mm front and rear
Cockpit and seat
Cockpit
ONE UP ALLOY
Carbon handlebar, 35mm diameter, 800mm length, 35mm rise and ONE UP FORGED 42mm stem
Dropper
ONE UP V3 Mechanical
31.6mm diameter with Travel of: 150 mm (S1), 175 mm (S2), 200 mm (S3)
Saddle
FIZIK Terra Aidon X5
